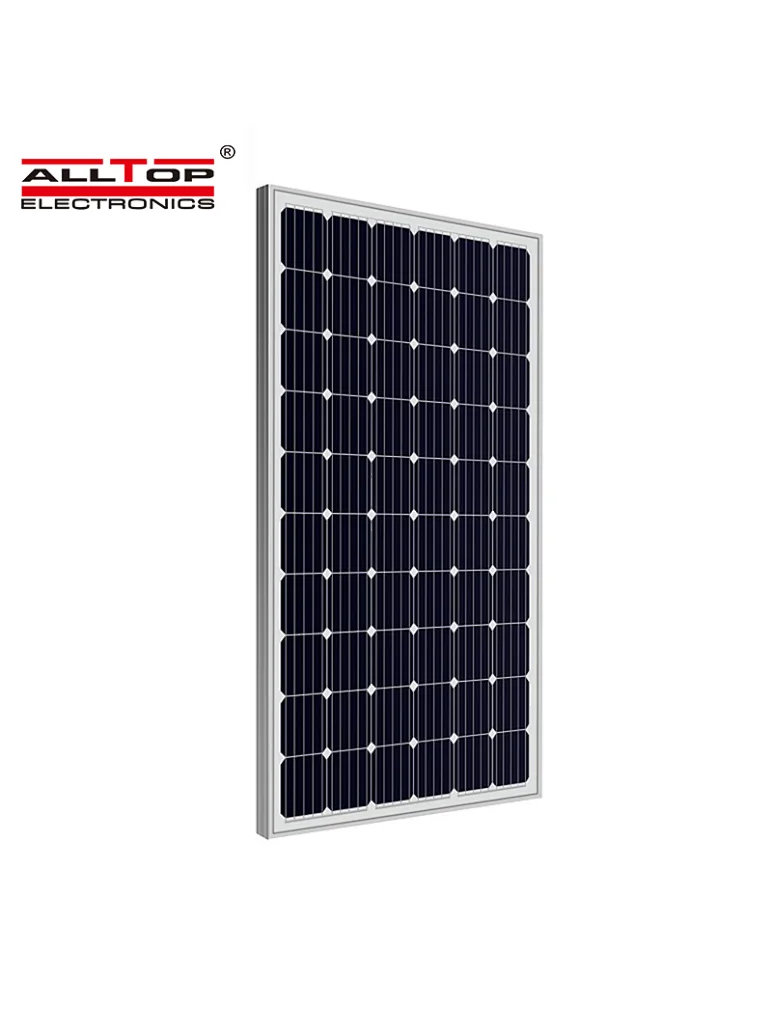

ALLTOP China Best Highest 500 600 Watt Solar Panel

ALLTOP China Best Highest 500 600 Watt Solar Panel

Model NO. ST-P-M-550W

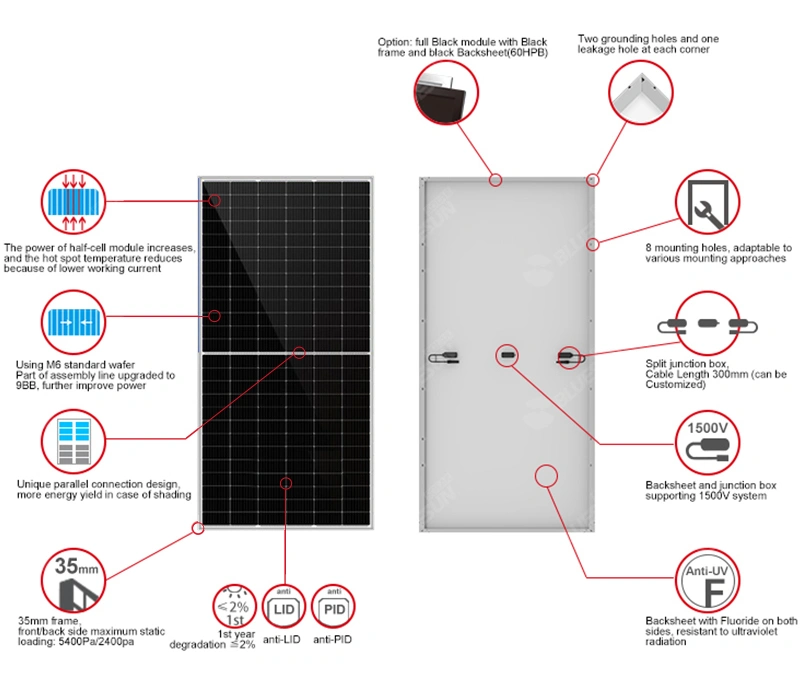

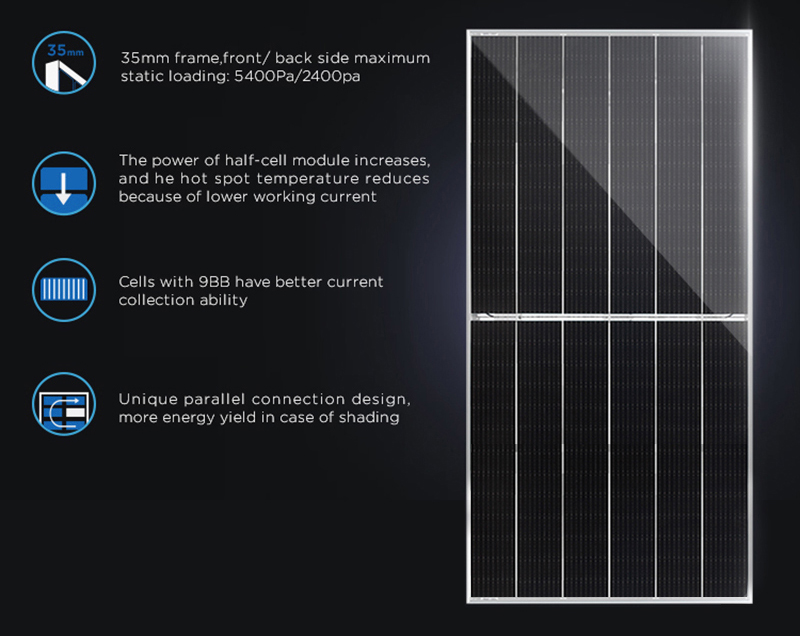

1.The highest 500 600 Watt solar panel utilize MBB and high-density interconnect technology to increase power output and module efficiency.
2.The module adopts advanced non-destructive cutting and half cutting technology and has excellent mechanical properties.

Quantity

Contact Now add to cart

1.0/+5W positive powertole rance Improved low light irradiance performance and low degradation
2.Optimized MBB design Cell e ciency >20.0%
3.Passed rigorous hail test Withstands 5400Pa snow and 2400Pa wind loads
4.Full automatic production line 100% three times EL and appearance inspection





500 watt solar panel,600 watt solar panel,highest watt solar panel,500 watt solar panel,600 watt solar panel,highest watt solar panel,500 watt solar panel,600 watt solar panel,highest watt solar panel,500 watt solar panel,600 watt solar panel,highest watt solar panel,500 watt solar panel,600 watt solar panel,highest watt solar panel

P/N	Product Description	PCS/CTN	CTNS	Packing Size (CM)			CBM/CTN	Total CBM	G.W/CTN (KGS)	Total G.W (KGS)
				L	W	H
ST-P-M-600W	600W Solar Panel Cell Type: Mono 210*105mm No.of Cells:120(12*10) Peak Power(Pmax): 600W Maximum Power Voltage(Vmp): 34.4V Maximum Power Current(lmp): 17.44A Open Circuit Voltage(Voc): 41.5V±3% Short Circuit Current(lsc): 18.52A+3% Module Efficiency(%): 21.2% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 2172*1303*35mm Weight: 30.90kg	1		219.00	131.50	5.00	0.1440	0.0000	32.00	0.00
ST-P-M-650W	650W Solar Panel Cell Type: Mono No.of Cells:132（6*22） Peak Power(Pmax): 650W Maximum Power Voltage(Vmp): 37.4V Maximum Power Current(lmp): 17.39A Open Circuit Voltage(Voc): 45.3V±3% Short Circuit Current(lsc): 18.44A+3% Module Efficiency(%): 20.9% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 2384*1303*35mm Weight: 35.7kg	1		240.00	132.00	5.00	0.1584	0.0000	37.00	0.00
ST-P-M-670W	670W Solar Panel Cell Type: Mono No.of Cells:132（6*22） Peak Power(Pmax): 670W Maximum Power Voltage(Vmp): 38.2V Maximum Power Current(lmp): 17.55A Open Circuit Voltage(Voc): 46.1V±3% Short Circuit Current(lsc): 18.62A+3% Module Efficiency(%): 21.6% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 2384*1303*35mm Weight: 35.7kg	1		240.00	132.00	5.00	0.1584	0.0000	37.00	0.00
