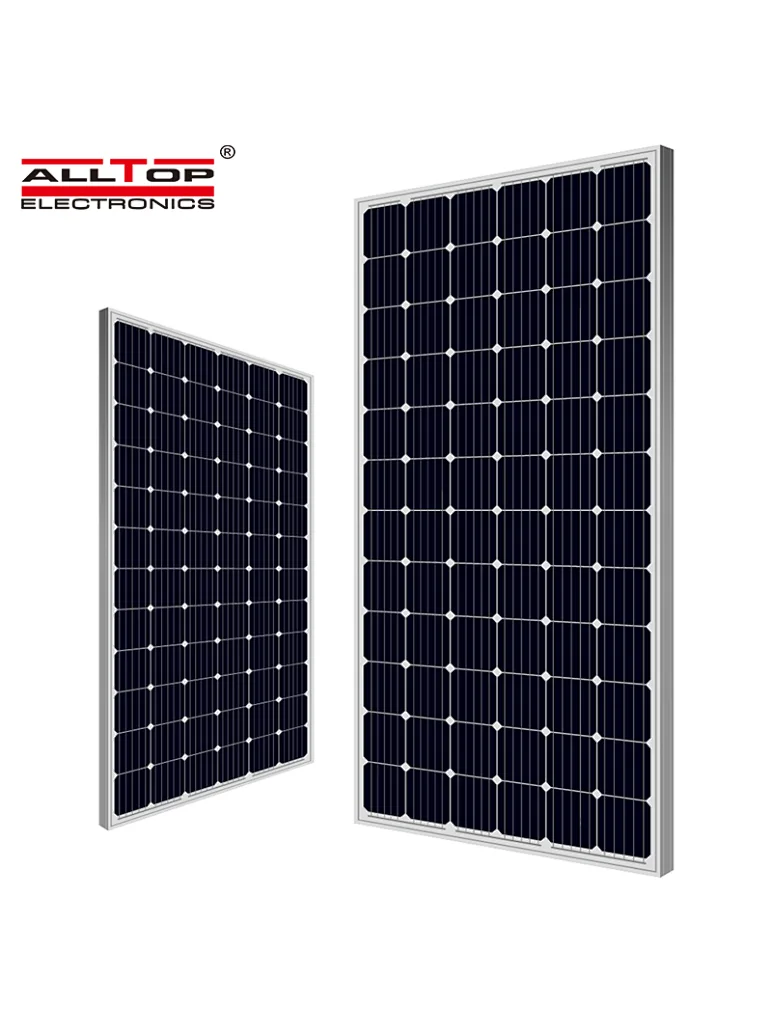

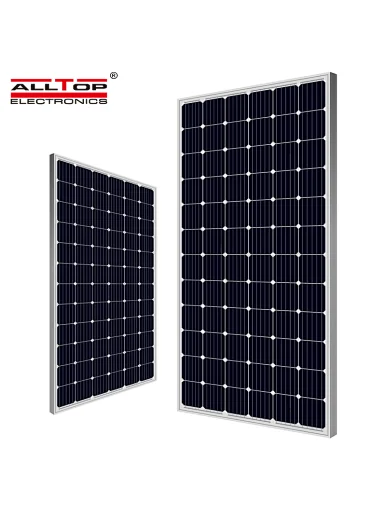

ALLTOP China Best 80W 110W 120W Solar Panel

ALLTOP China Best 80W 110W 120W Solar Panel

Model NO. ST-P-M-120W

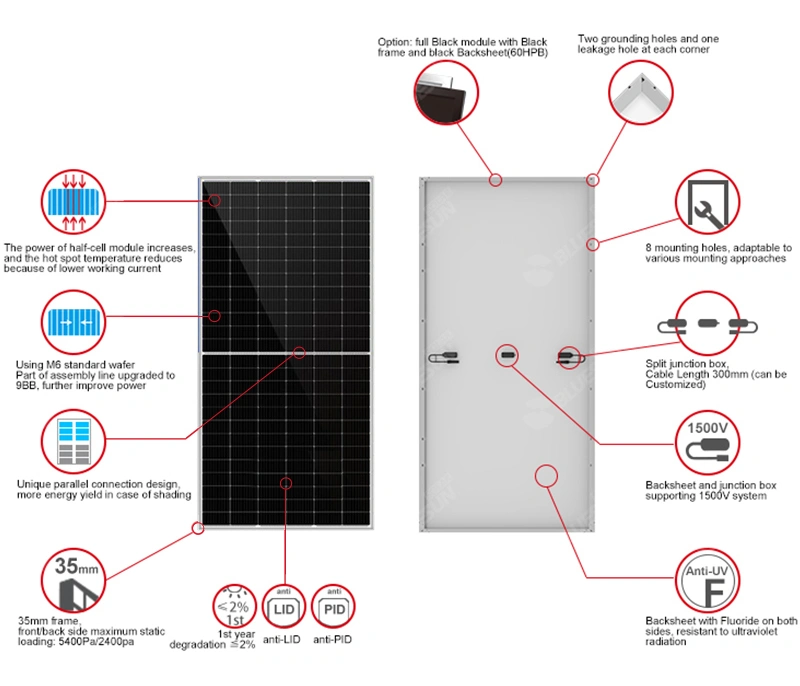

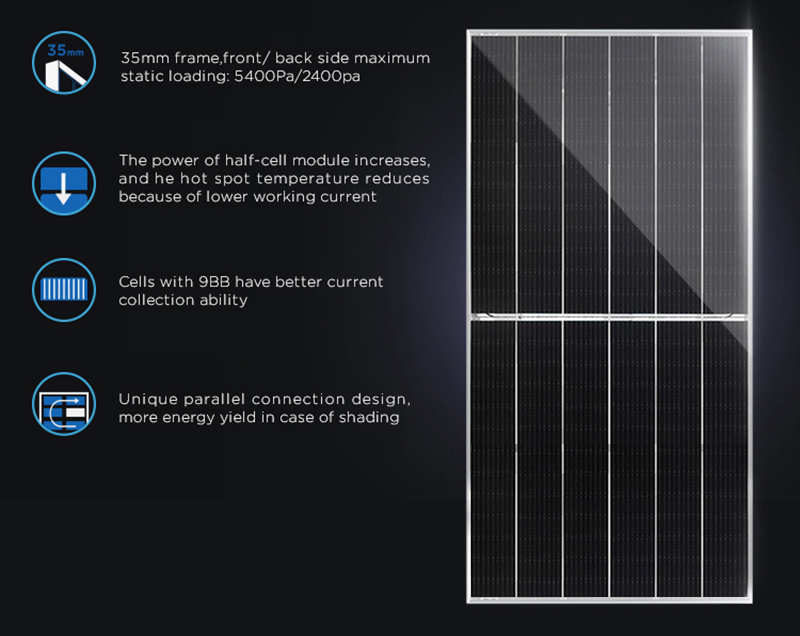

1.The 80W 110W 120W solar panel utilize MBB and high-density interconnect technology to increase power output and module efficiency.
2.The module adopts advanced non-destructive cutting and half cutting technology and has excellent mechanical properties.

Quantity

Contact Now add to cart

China Best 80W 110W 120W Solar Panel
1.0/+5W positive powertole rance Improved low light irradiance performance and low degradation
2.Optimized MBB design Cell e ciency >20.0%
3.Passed rigorous hail test Withstands 5400Pa snow and 2400Pa wind loads

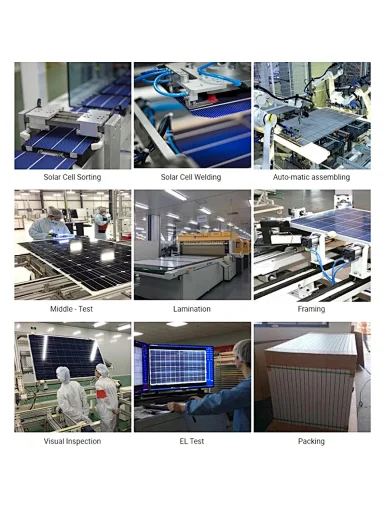

4.Full automatic production line 100% three times EL and appearance inspection
5.The module adopts advanced non-destructive cutting and half cutting technology and has excellent mechanical properties.





110w solar panel,120w solar panel,80w solar panel,110w solar panel,120w solar panel,80w solar panel,110w solar panel,120w solar panel,80w solar panel,110w solar panel,120w solar panel,80w solar panel

P/N	Product Description	PCS/CTN	CTNS	Packing Size (CM)			CBM/CTN	Total CBM	G.W/CTN (KGS)	Total G.W (KGS)
				L	W	H
ST-P-M-120W	120W Solar Panel Cell Type: Mono No.of Cells:36(4*9) Peak Power(Pmax): 120W Maximum Power Voltage(Vmp): 17.8V Maximum Power Current(lmp): 6.75A Open Circuit Voltage(Voc): 22.5V±3% Short Circuit Current(lsc): 7.62A+3% Module Efficiency(%): 19.5% Maximum System Voltage(V):1000V Maximum Series FuseRating(A): 10A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 1120*660*35mm Weight: 8.5kg	1		113.00	67.00	5.00	0.0379	0.0000	10.00	0.00
