ALLTOP China Best 380 440 450 Watt Solar Panel

ALLTOP China Best 380 440 450 Watt Solar Panel

Model NO. ST-P-M-450W

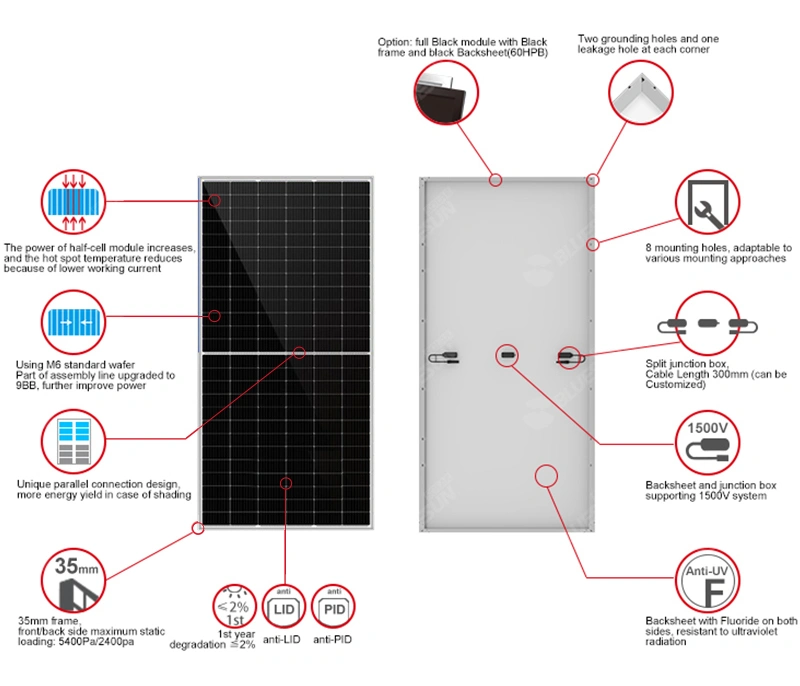

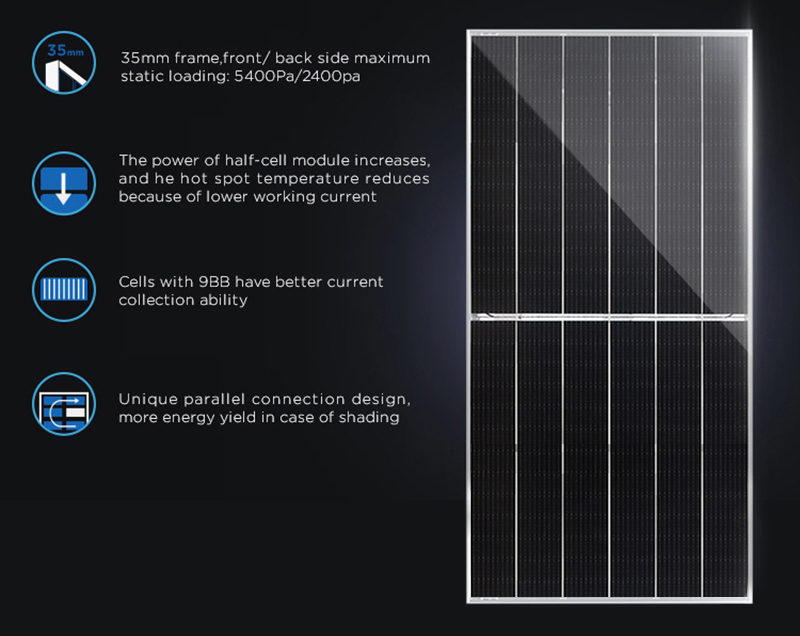

1.The 380 440 450 Watt solar panel utilize MBB and high-density interconnect technology to increase power output and module efficiency.
2.The module adopts advanced non-destructive cutting and half cutting technology and has excellent mechanical properties.

Quantity

Contact Now add to cart

1.Solar cell adpots new technology to improve the efficiency of modules,offers a better aesthetic apperance making it perfect for rooftop installation and application
2.High Module conversion efficiency,through innovative manufactureing technology
3.Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments
4.Certified to withstand：wind load(2400Pa) and snow load (5400Pa)
5.High salt mist and ammonia resistance certified by TUV





440 watt solar panel,450 watt solar panel,380 watt solar panel,440 watt solar panel,450 watt solar panel,380 watt solar panel,440 watt solar panel,450 watt solar panel,380 watt solar panel,440 watt solar panel,450 watt solar panel,380 watt solar panel

P/N	Product Description	PCS/CTN	CTNS	Packing Size (CM)			CBM/CTN	Total CBM	G.W/CTN (KGS)	Total G.W (KGS)
				L	W	H
ST-P-M-450W	450W Solar Panel Cell Type: Mono No.of Cells:144(6*24) Peak Power(Pmax): 450W Maximum Power Voltage(Vmp): 41.5V Maximum Power Current(lmp): 10.85A Open Circuit Voltage(Voc): 49.3V±3% Short Circuit Current(lsc): 11.6A+3% Module Efficiency(%): 20.7% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 2094*1038*35mm Weight: 24kg	1		211.00	105.00	5.00	0.1108	0.0000	25.50	0.00
ST-P-M-460W	460W Solar Panel Cell Type: Mono No.of Cells:144(6*24) Peak Power(Pmax): 460W Maximum Power Voltage(Vmp): 41.3V Maximum Power Current(lmp): 11.13A Open Circuit Voltage(Voc): 45V±3% Short Circuit Current(lsc): 11.68A+3% Module Efficiency(%): 21% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 2094*1038*35mm Weight: 24kg	1		211.00	105.00	5.00	0.1108	0.0000	25.50	0.00
ST-P-M-500W	500W Solar Panel Cell Type: Mono No.of Cells:100 Peak Power(Pmax): 500W Maximum Power Voltage(Vmp): 28.8V Maximum Power Current(lmp): 17.36A Open Circuit Voltage(Voc): 34.5V±3% Short Circuit Current(lsc): 18.55A+3% Module Efficiency(%): 20.8% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 2185*1098*35mm Weight: 26.5kg	1		220.00	111.00	5.00	0.1221	0.0000	28.00	0.00
