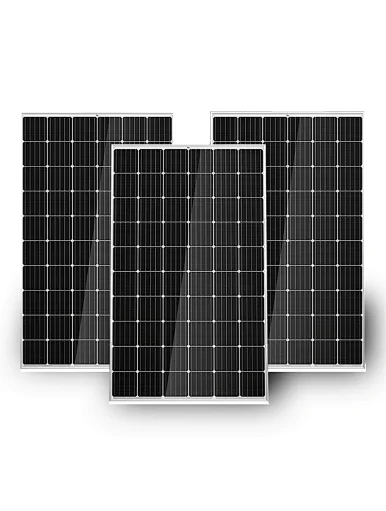

ALLTOP China Best 340 360 370 Watt Solar Panel

ALLTOP China Best 340 360 370 Watt Solar Panel

Model NO. ST-P-M-360W

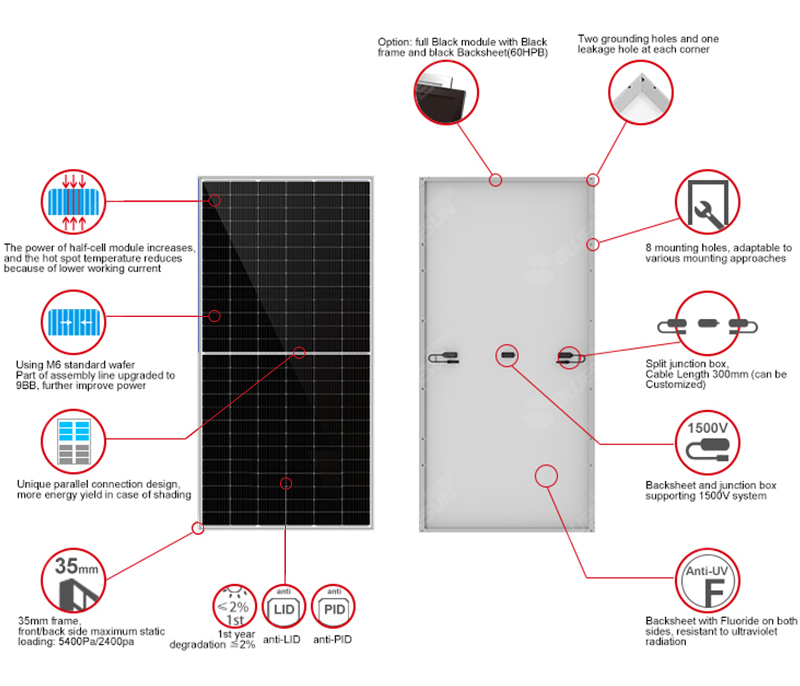

1.The 340 360 370 Watt solar panel utilize MBB and high-density interconnect technology to increase power output and module efficiency.
2.The module adopts advanced non-destructive cutting and half cutting technology and has excellent mechanical properties.

Quantity

Contact Now add to cart

1.0/+5W positive powertole rance Improved low light irradiance performance and low degradation
2.Optimized MBB design Cell e ciency >20.0%
3.Passed rigorous hail test Withstands 5400Pa snow and 2400Pa wind loads
4.Full automatic production line 100% three times EL and appearance inspection





360 watt solar panel,370 watt solar panel,340 watt solar panel,360 watt solar panel,370 watt solar panel,340 watt solar panel,360 watt solar panel,370 watt solar panel,340 watt solar panel,360 watt solar panel,370 watt solar panel,340 watt solar panel,360 watt solar panel,370 watt solar panel,340 watt solar panel

P/N	Product Description	PCS/CTN	CTNS	Packing Size (CM)			CBM/CTN	Total CBM	G.W/CTN (KGS)	Total G.W (KGS)
				L	W	H
ST-P-M-285W	285W Solar Panel Cell Type: Mono No.of Cells: 60(6*10) Peak Power(Pmax): 285W Maximum Power Voltage(Vmp): 31.55V Maximum Power Current(lmp): 9.04A Open Circuit Voltage(Voc): 38.55V±3% Short Circuit Current(lsc): 9.5A+3% Module Efficiency(%): 19.5% Maximum System Voltage(V):1000V Maximum Series FuseRating(A): 15A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 1658*992*35mm Weight: 23kg	1		167.00	100.00	5.00	0.0835	0.0000	24.00	0.00
ST-P-M-310W	310W Solar Panel Cell Type: Mono No.of Cells:60(6*10) Peak Power(Pmax): 310W Maximum Power Voltage(Vmp): 32.29V Maximum Power Current(lmp): 9.57A Open Circuit Voltage(Voc): 39.57V±3% Short Circuit Current(lsc): 10.07A+3% Module Efficiency(%): 18.7% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 1665*996*35mm Weight: 17.8kg	1		168.00	101.00	5.00	0.0848	0.0000	19.00	0.00
ST-P-M-320W	320W Solar Panel Cell Type: Mono No.of Cells:60(6*10) Peak Power(Pmax): 320W Maximum Power Voltage(Vmp): 32.96V Maximum Power Current(lmp): 9.71A Open Circuit Voltage(Voc): 40.44V±3% Short Circuit Current(lsc): 10.17A+3% Module Efficiency(%): 19.3% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 1665*996*35mm Weight: 17.8kg	1		168.00	101.00	5.00	0.0848	0.0000	19.00	0.00
ST-P-M-330W	330W Solar Panel Cell Type: Mono No.of Cells:60(6*10) Peak Power(Pmax): 330W Maximum Power Voltage(Vmp): 33.43V Maximum Power Current(lmp): 9.87A Open Circuit Voltage(Voc): 41.22V±3% Short Circuit Current(lsc): 10.29A+3% Module Efficiency(%): 19.9% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 1665*996*35mm Weight: 17.8kg	1		168.00	101.00	5.00	0.0848	0.0000	19.00	0.00
ST-P-M-360W	360W Solar Panel Cell Type: Mono No.of Cells:120(6*20) Peak Power(Pmax): 360W Maximum Power Voltage(Vmp): 33.7V Maximum Power Current(lmp): 10.69A Open Circuit Voltage(Voc): 40.4V±3% Short Circuit Current(lsc): 11.4A+3% Module Efficiency(%): 19.5% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 1755*1038*35mm Weight: 20.5kg	1		177.00	105.00	5.00	0.0929	0.0000	22.00	0.00
ST-P-M-380W	380W Solar Panel Cell Type: Mono No.of Cells:72(6*12) Peak Power(Pmax): 380W Maximum Power Voltage(Vmp): 39.43V Maximum Power Current(lmp): 9.64A Open Circuit Voltage(Voc): 48.54V±3% Short Circuit Current(lsc): 10.12A+3% Module Efficiency(%): 19.3% Maximum System Voltage(V):1500V Maximum Series FuseRating(A): 30A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 1979*996*35mm Weight: 21.5kg	1		199.50	101.00	5.00	0.1007	0.0000	23.00	0.00
