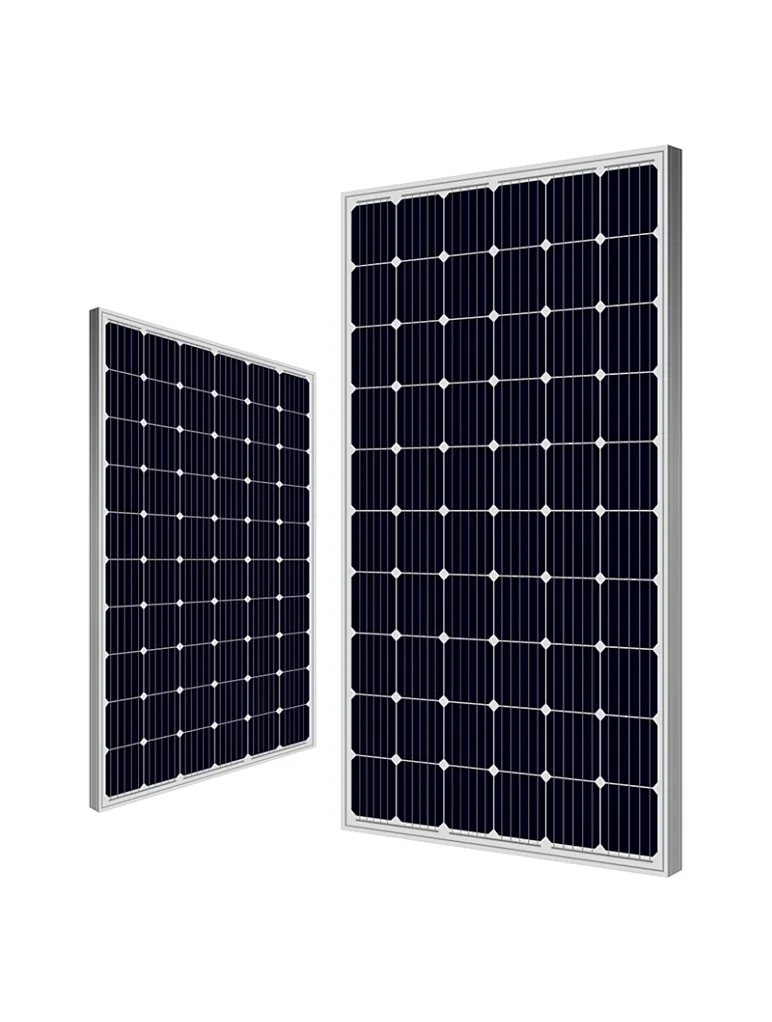

ALLTOP China Best 170 180 200 Watt Solar Panel

ALLTOP China Best 170 180 200 Watt Solar Panel

Model NO. ST-P-M-200W

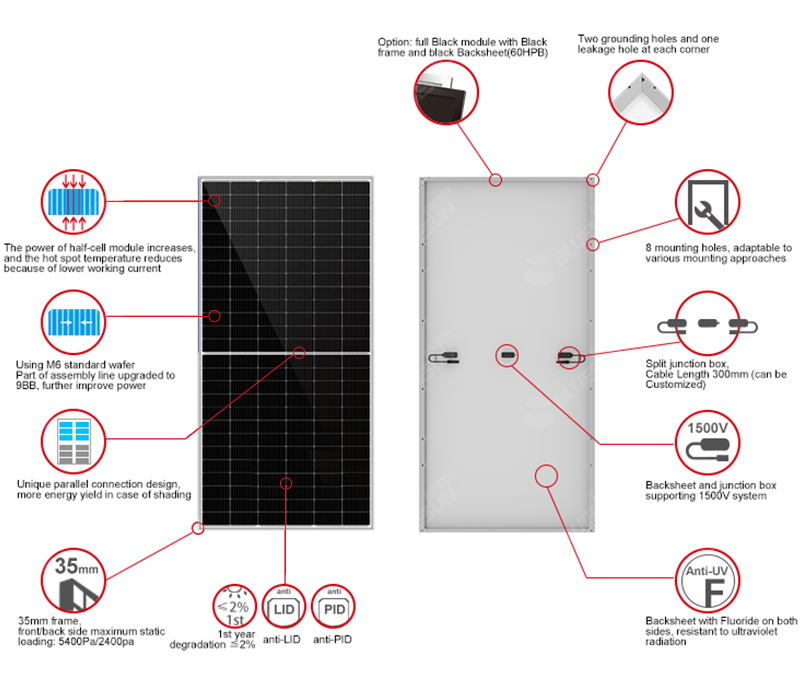

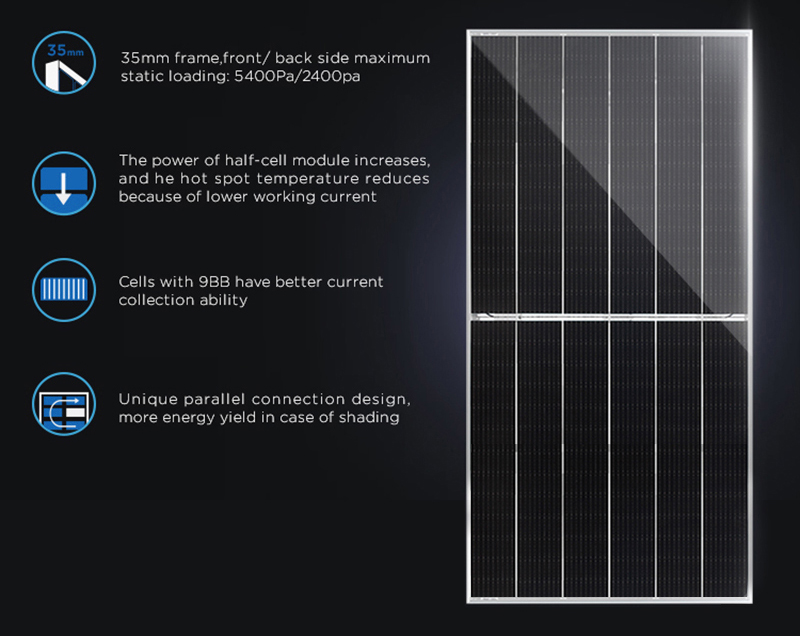

1.The 170 180 200 Watt solar panel utilize MBB and high-density interconnect technology to increase power output and module efficiency.
2.The module adopts advanced non-destructive cutting and half cutting technology and has excellent mechanical properties.

Quantity

Contact Now add to cart

1.Solar cell adpots new technology to improve the efficiency of modules,offers a better aesthetic apperance making it perfect for rooftop installation and application
2.High Module conversion efficiency,through innovative manufactureing technology
3.Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments
4.Certified to withstand：wind load(2400Pa) and snow load (5400Pa)
5.High salt mist and ammonia resistance certified by TUV





200 w solar panel,170 watt solar panel,180 watt solar panel,200 w solar panel,170 watt solar panel,180 watt solar panel,200 w solar panel,170 watt solar panel,180 watt solar panel,200 w solar panel,170 watt solar panel,180 watt solar panel

P/N	Product Description	PCS/CTN	CTNS	Packing Size (CM)			CBM/CTN	Total CBM	G.W/CTN (KGS)	Total G.W (KGS)
				L	W	H
ST-P-M-200W	200W Solar Panel Cell Type: Mono No.of Cells:72(6*12) Peak Power(Pmax): 200W Maximum Power Voltage(Vmp): 36.8V Maximum Power Current(lmp): 5.44A Open Circuit Voltage(Voc): 45.08V±3% Short Circuit Current(lsc): 5.73A+3% Module Efficiency(%): 19.2% Maximum System Voltage(V):1000V Maximum Series FuseRating(A): 10A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 1580*808*35mm Weight: 15kg	1		159.00	81.80	5.00	0.0650	0.0000	16.00	0.00
