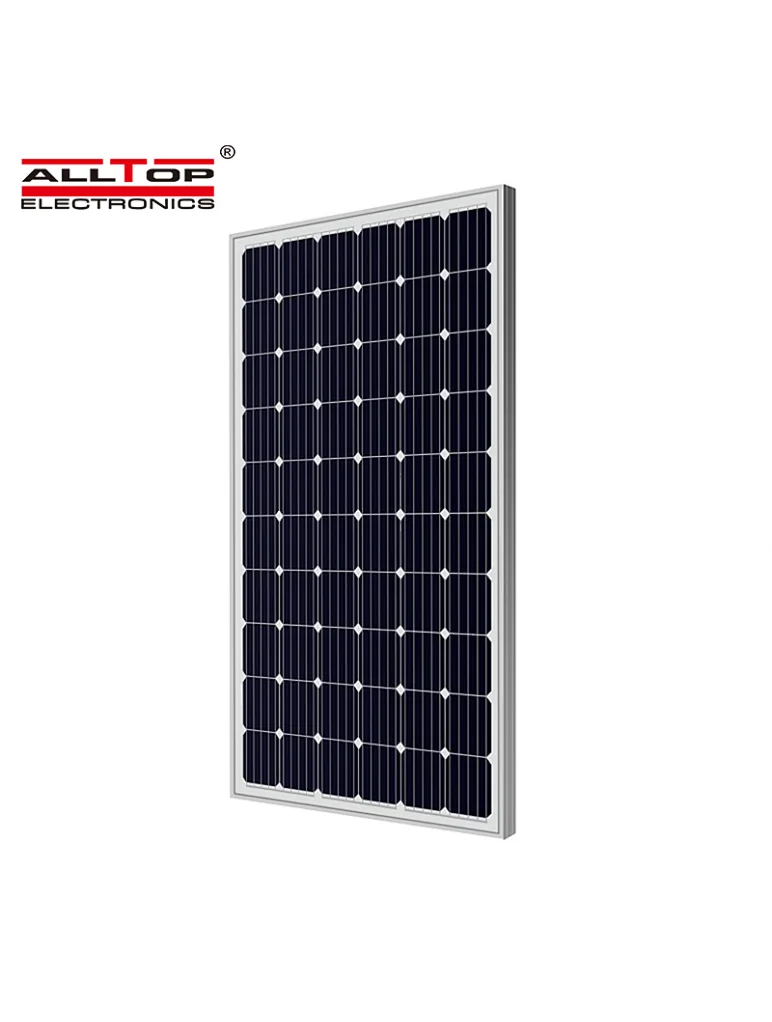

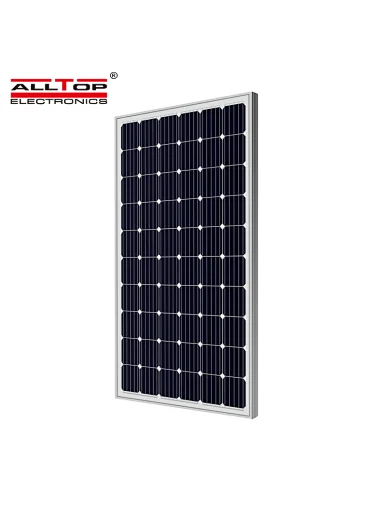

ALLTOP China Best 70 80 100 Watt Solar Panel

ALLTOP China Best 70 80 100 Watt Solar Panel

Model NO. ST-P-M-100W

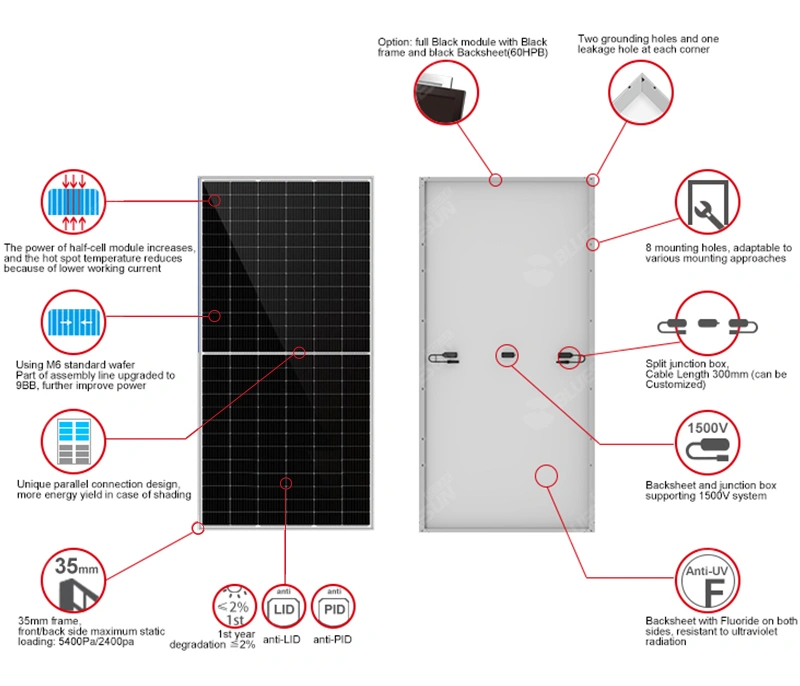

1.The 70 80 100 watt solar panel utilize MBB and high-density interconnect technology to increase power output and module efficiency.
2.The module adopts advanced non-destructive cutting and half cutting technology and has excellent mechanical properties.

Quantity

Contact Now add to cart

1.Solar cell adpots new technology to improve the efficiency of modules,offers a better aesthetic apperance making it perfect for rooftop installation and application
2.High Module conversion efficiency,through innovative manufactureing technology
3.Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments

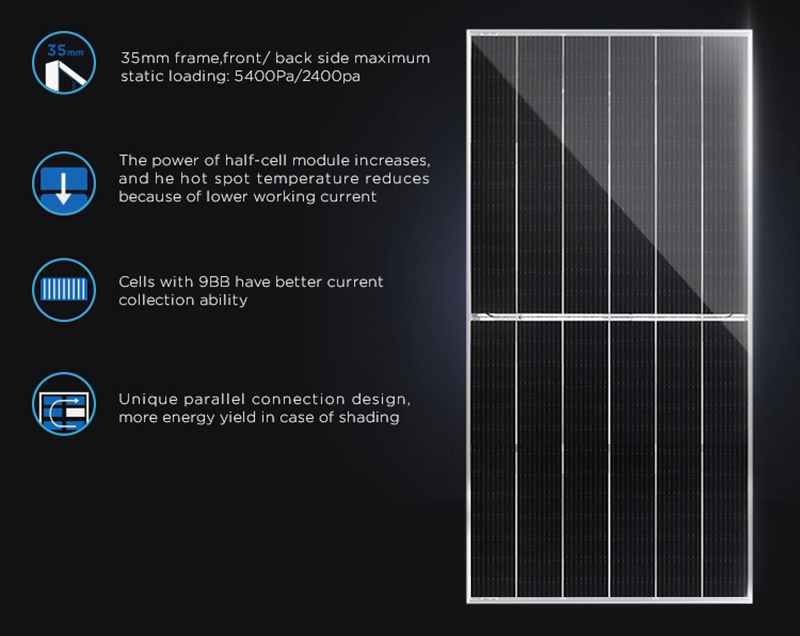

4.Certified to withstand：wind load(2400Pa) and snow load (5400Pa)
5.High salt mist and ammonia resistance certified by TUV





100 watt solar panel,80 watt solar panel,70 watt solar panel,100 watt solar panel,80 watt solar panel,70 watt solar panel,100 watt solar panel,80 watt solar panel,70 watt solar panel,100 watt solar panel,80 watt solar panel,70 watt solar panel

P/N	Product Description	PCS/CTN	CTNS	Packing Size (CM)			CBM/CTN	Total CBM	G.W/CTN (KGS)	Total G.W (KGS)
				L	W	H
ST-P-M-70W	70W Solar Panel Cell Type: Mono Peak Power(Pmax): 70W Maximum Power Voltage(Vmp): 17.8V Maximum Power Current(lmp): 3.94A Open Circuit Voltage(Voc): 22.5V±3% Short Circuit Current(lsc): 4.37A+3% Module Efficiency(%): 18.0% Maximum System Voltage(V):1000V Maximum Series FuseRating(A): 10A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 660x664x35mm Weight: 5.2kg	1		67.00	67.00	4.50	0.0202	0.0000	5.80	0.00
ST-P-M-100W	100W Solar Panel Cell Type: Mono No.of Cells:36(4*9) Peak Power(Pmax): 100W Maximum Power Voltage(Vmp): 18.3V Maximum Power Current(lmp): 5.47A Open Circuit Voltage(Voc): 22.42V±3% Short Circuit Current(lsc): 5.76A+3% Module Efficiency(%): 13.77% Maximum System Voltage(V):1000V Maximum Series FuseRating(A): 10A Power Tolerance: 0~+3W PmaxTemperature Coefficients(W/℃): -0.340%/℃ Voc Temperature Coefficients(V/℃): -0.250%/℃ Isc TemperatureCoefficients(A/℃): +0.040%/℃ NOCT NominalOperatingCell Remperature(C): 45±2℃ Operatingand Storage Temperature(℃): -40~+85℃ Dimensions: 1200x550x30mm Weight: 7.7kg	1		121.00	56.00	4.00	0.0271	0.0000	9.00	0.00
