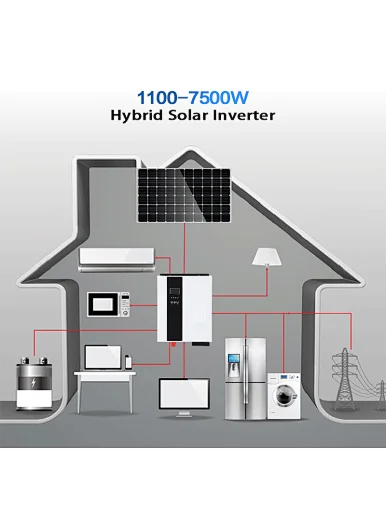

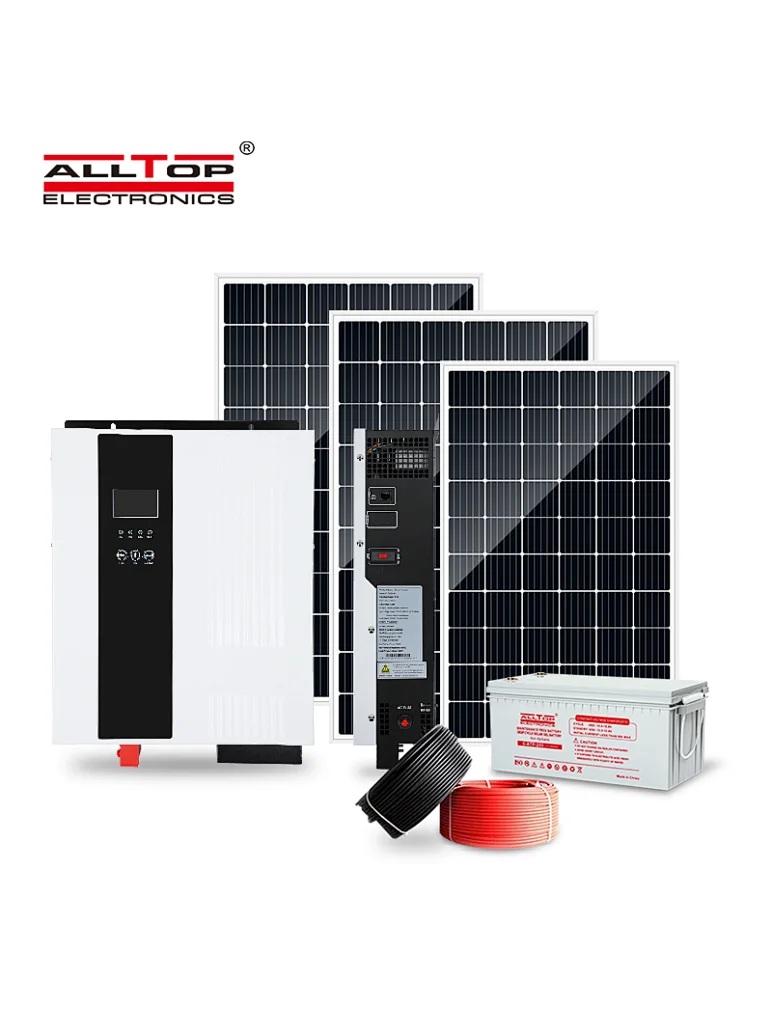

ALLTOP 1KW 3KW 5KW 7KW Off Grid Solar Inverter System

Model NO. ST135

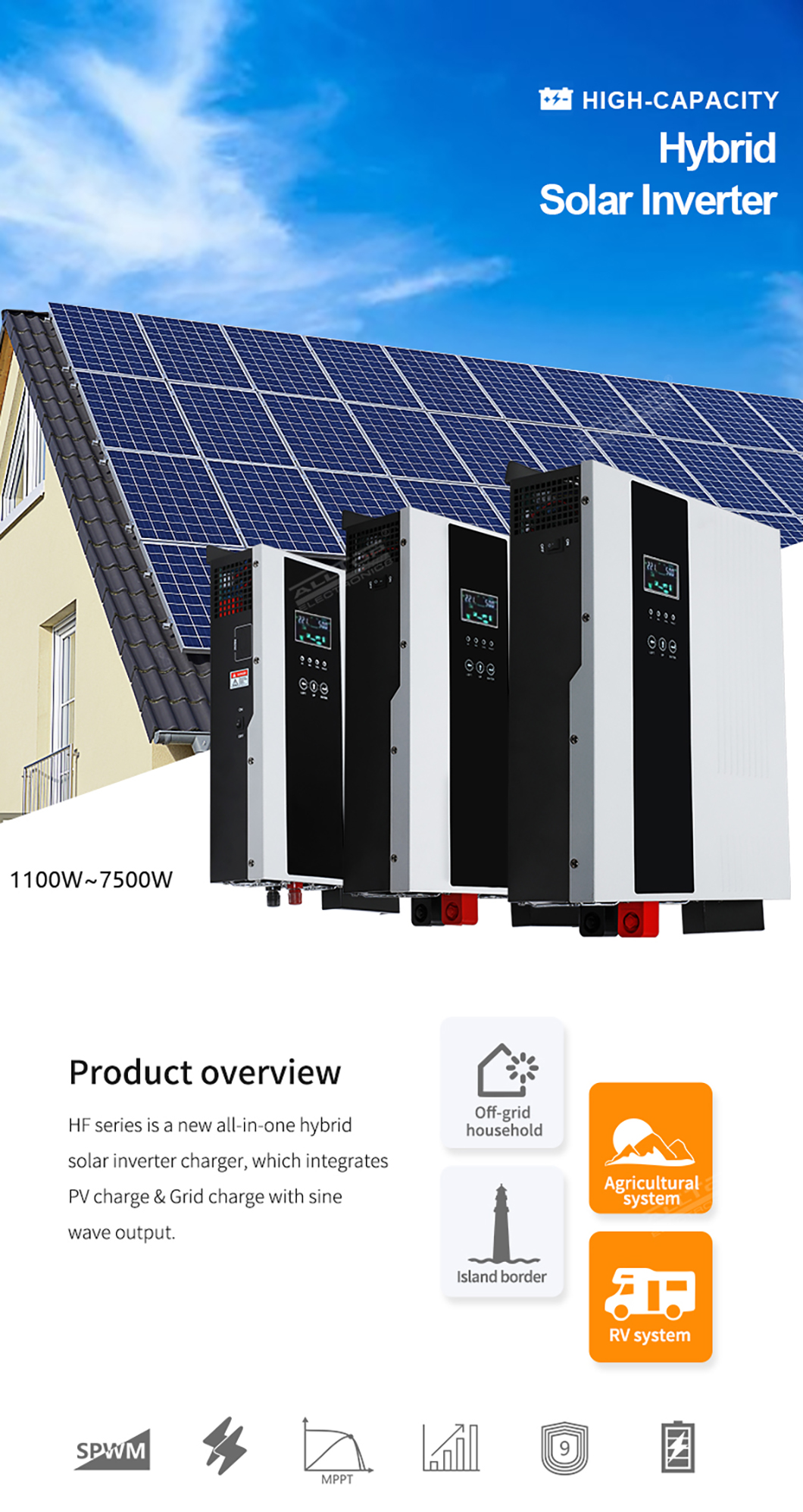

1.1KW 3KW 5KW 7KW Off Grid Solar Inverter System High frequency design, high power density, small size, high efficiency, low no-load loss.
2.Built-in MPPT or PWM solar charge controller optional. Pure sine wave output, any types of loads adaptable. Battery charge and discharge voltage parameters adjustable, suitable for different types of batteries, can prolong the life of the battery and improve system performance.

Quantity

1.AC charge current 0-60A adjustable, battery capacity configuration more flexible.

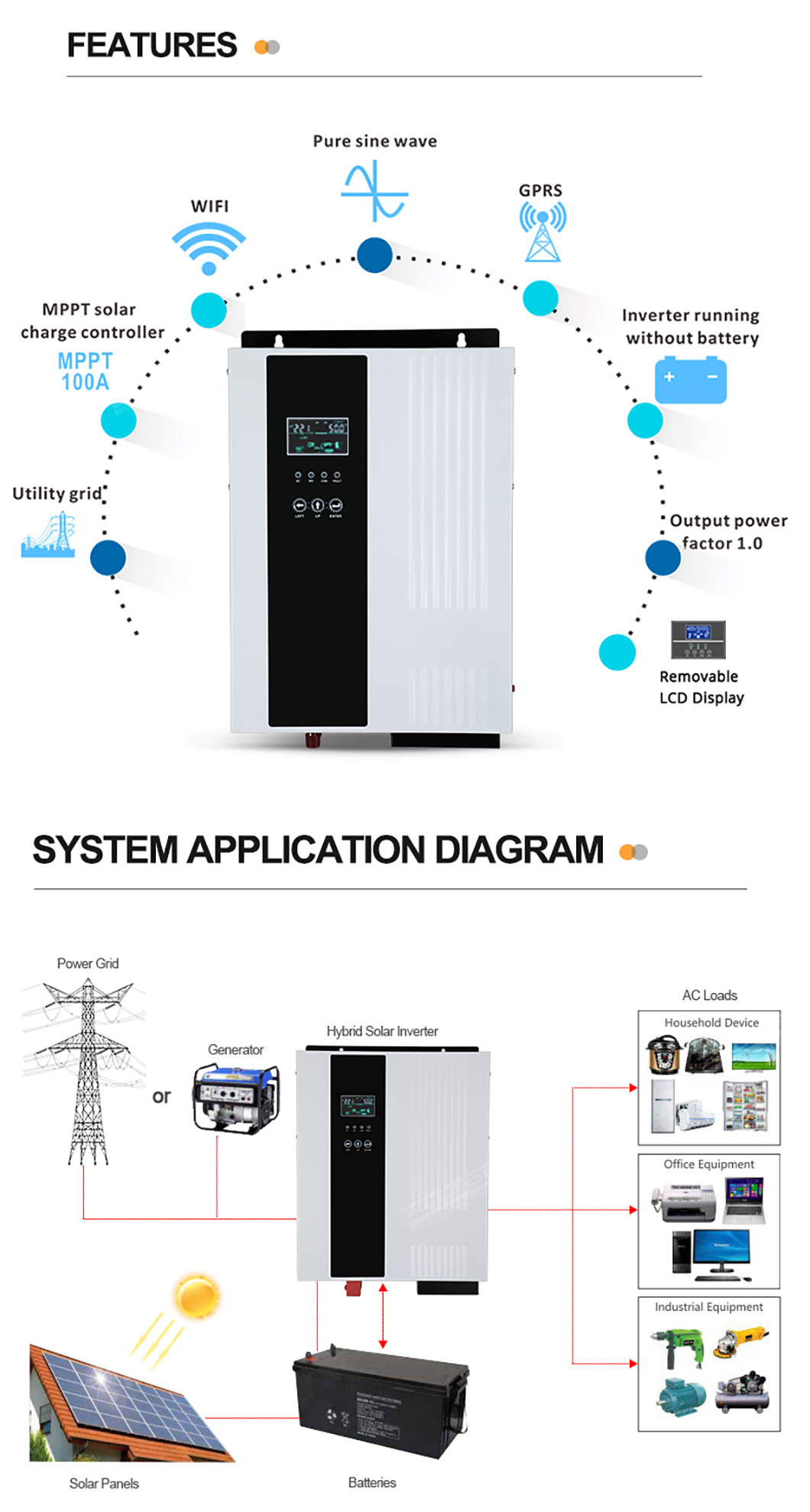

2.Three working modes adjustable: AC first, Battery first, PV first.
3.Output voltage/frequency adjustable function, adapt to different grid environment.
4.Extra wide voltage and frequency input range, support mains or generator.
5.LED+LCD display, easy operation and data checking, can set each function and data directly; Multi-protection function(overload,over temperature, short circuit protection and so on)
6.RS485 communication port/APP optional.

off grid solar inverter 5kw,7kw solar inverter,3kw off grid solar inverter

off grid solar inverter 5kw,7kw solar inverter,3kw off grid solar inverter,off grid solar inverter 5kw,7kw solar inverter,3kw off grid solar inverter,off grid solar inverter 5kw,7kw solar inverter,3kw off grid solar inverter

Sitemap

Telephone: 0086 760 8756 7561

Mobile: 0086 18022139034

Email: fti@alltoplighting.com

Company Address:Fuqing Road 2, Yongxing Industrial Park, Henglan, Zhongshan, Guangdong, China 528400

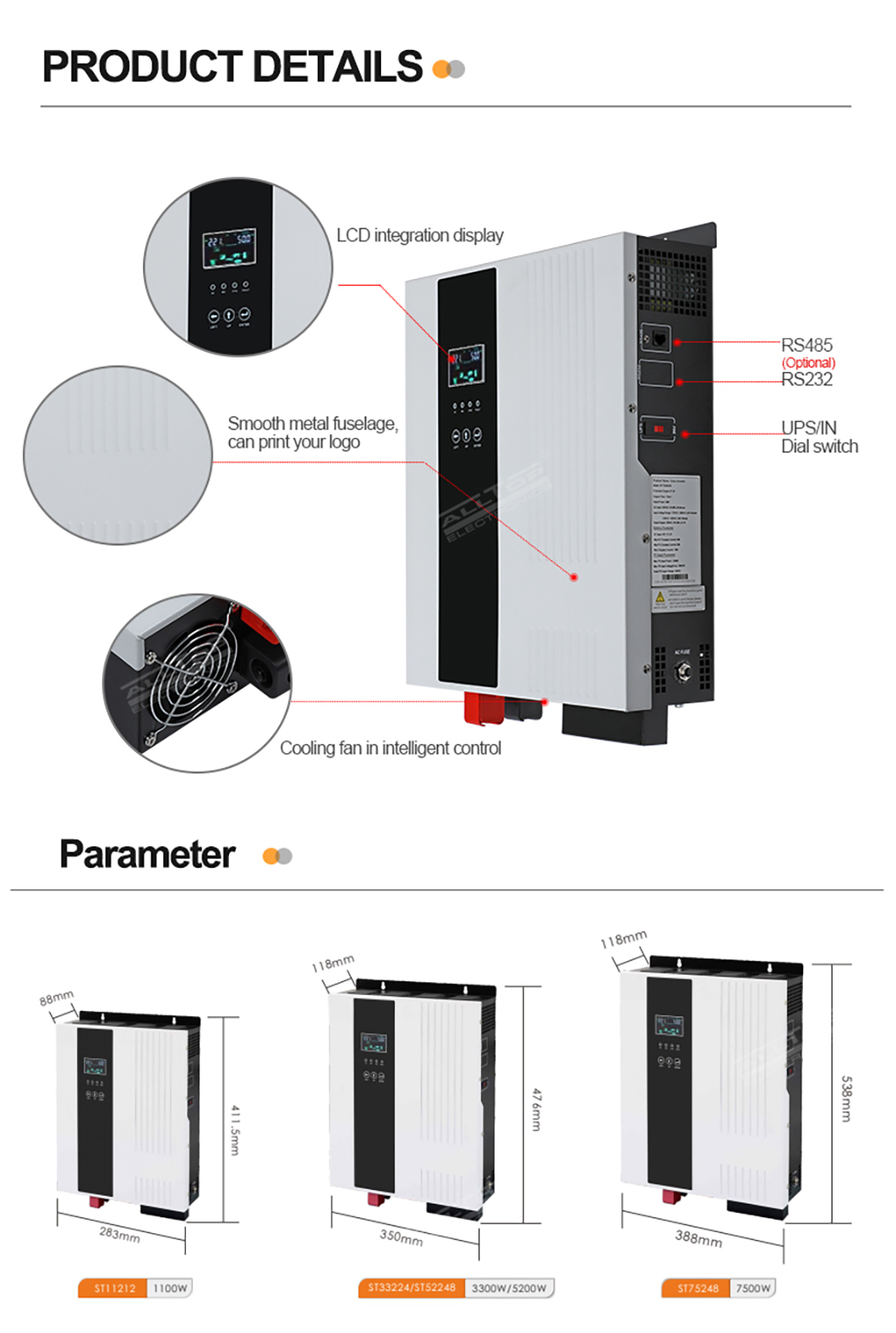

P/N	Product Description	PCS/CTN	CTNS	Packing Size (CM)			CBM/CTN	Total CBM	G.W/CTN (KGS)	Total G.W (KGS)
P/N	Product Description	PCS/CTN	CTNS	L	W	H	CBM/CTN	Total CBM	G.W/CTN (KGS)	Total G.W (KGS)

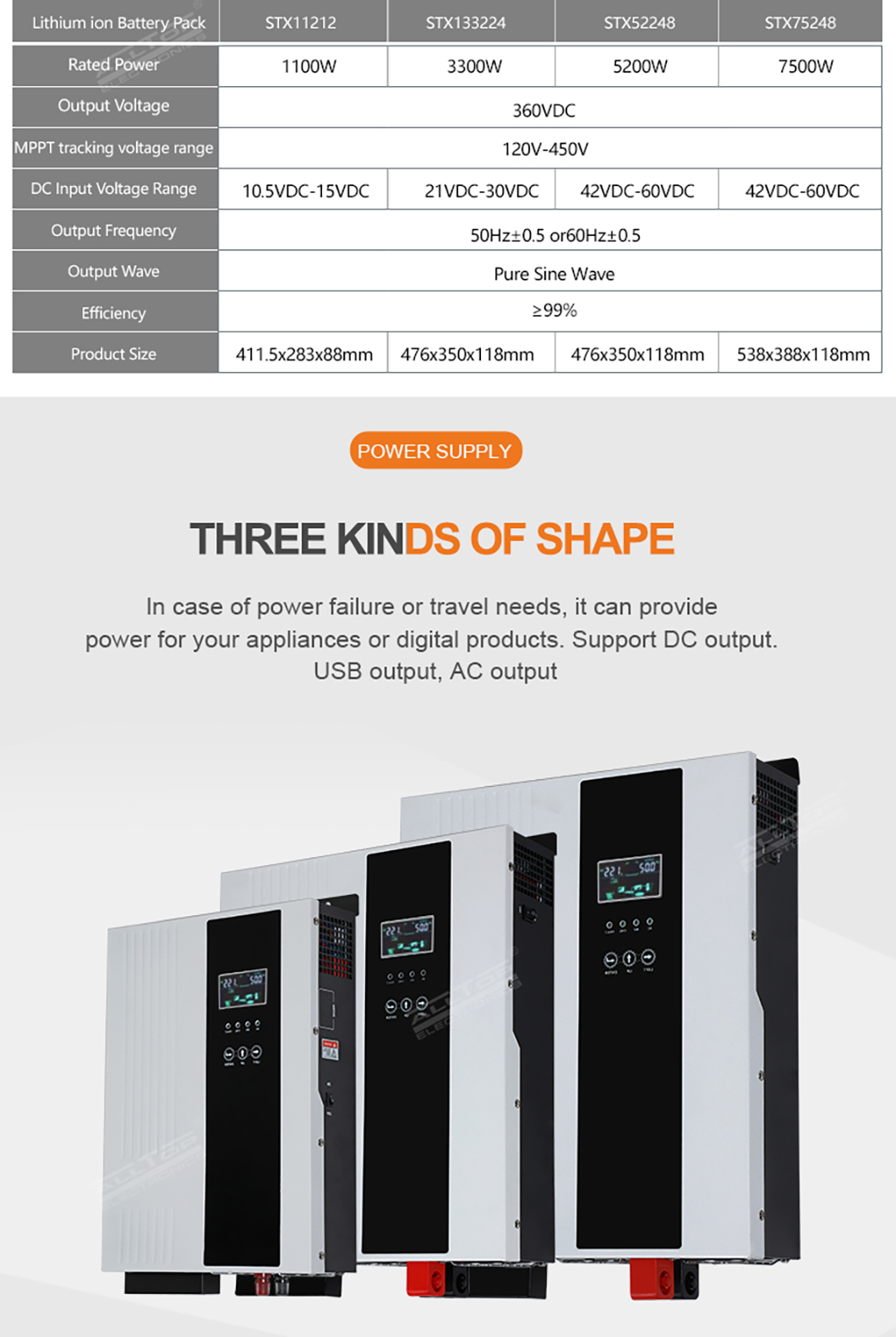

STX11212	Hybrid Solar Inverter Rated Power: 1100W Peak Power（20ms）:3000VA Charging Mode: MPPT Rated PV Input Voltage:360VDC MPPT tracking voltage range:120V-450V Max PV Input Voltage(Voc):500V PV Array Maximum Power: 1500W DC Input Voltage Range: 10.5VDC-15VDC Rated AC input voltage: 220VAC/230VAC/240VAC C Input Frequency Range: 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz) Output Peak value of output efficiency(Battery/PV Mode): 94%(peak value) Output Voltage(Battery/PV Mode): 220VAC+2%/230VAC±2%/240VAC±2% Output Frequency(Battery/PV Mode): 50Hz±0.5 or60Hz±0.5 Output Wave(Battery/PV Mode): Pure Sine Wave Efficiency(AC Mode): ≥99% Product Size: 411.5x283x88mm Warranty: 3 years	1	0.00	45.90	34.50	14.70	0.0233	0.0000	8.00	0.00
STX33224	Hybrid Solar Inverter Rated Power: 3300W Peak Power（20ms）:9000VA Charging Mode: MPPT Rated PV Input Voltage:360VDC MPPT tracking voltage range:120V-450V Max PV Input Voltage(Voc):500V PV Array Maximum Power: 4000W DC Input Voltage Range: 21VDC-30VDC Rated AC input voltage: 220VAC/230VAC/240VAC C Input Frequency Range: 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz) Output Peak value of output efficiency(Battery/PV Mode): 94%(peak value) Output Voltage(Battery/PV Mode): 220VAC+2%/230VAC±2%/240VAC±2% Output Frequency(Battery/PV Mode): 50Hz±0.5 or60Hz±0.5 Output Wave(Battery/PV Mode): Pure Sine Wave Efficiency(AC Mode): ≥99% Product Size: 476x350x118mm Warranty: 3 years	1	0.00	50.20	40.20	16.50	0.0333	0.0000	12.50	0.00
STX52248	Hybrid Solar Inverter Rated Power: 5200W Peak Power（20ms）:15KVA Charging Mode: MPPT Rated PV Input Voltage:360VDC MPPT tracking voltage range:120V-450V Max PV Input Voltage(Voc):500V PV Array Maximum Power: 4000W DC Input Voltage Range: 42VDC-60VDC Rated AC input voltage: 220VAC/230VAC/240VAC C Input Frequency Range: 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz) Output Peak value of output efficiency(Battery/PV Mode): 94%(peak value) Output Voltage(Battery/PV Mode): 220VAC+2%/230VAC±2%/240VAC±2% Output Frequency(Battery/PV Mode): 50Hz±0.5 or60Hz±0.5 Output Wave(Battery/PV Mode): Pure Sine Wave Efficiency(AC Mode): ≥99% Product Size: 476x350x118mm Warranty: 3 years	1	0.00	50.20	40.20	16.50	0.0333	0.0000	12.80	0.00
STX75248	Hybrid Solar Inverter Rated Power: 7500W Peak Power（20ms）:21.6KVA Charging Mode: MPPT Rated PV Input Voltage:360VDC MPPT tracking voltage range:120V-450V Max PV Input Voltage(Voc):500V PV Array Maximum Power: 4000W*2 DC Input Voltage Range: 42VDC-60VDC Rated AC input voltage: 220VAC/230VAC/240VAC C Input Frequency Range: 45Hz~55Hz(50Hz),55Hz~65Hz(60Hz) Output Peak value of output efficiency(Battery/PV Mode): 94%(peak value) Output Voltage(Battery/PV Mode): 220VAC+2%/230VAC±2%/240VAC±2% Output Frequency(Battery/PV Mode): 50Hz±0.5 or60Hz±0.5 Output Wave(Battery/PV Mode): Pure Sine Wave Efficiency(AC Mode): ≥99% Product Size: 538x388x118mm Warranty: 3 years	1	0.00	56.10	45.40	16.70	0.0425	0.0000	17.50	0.00
